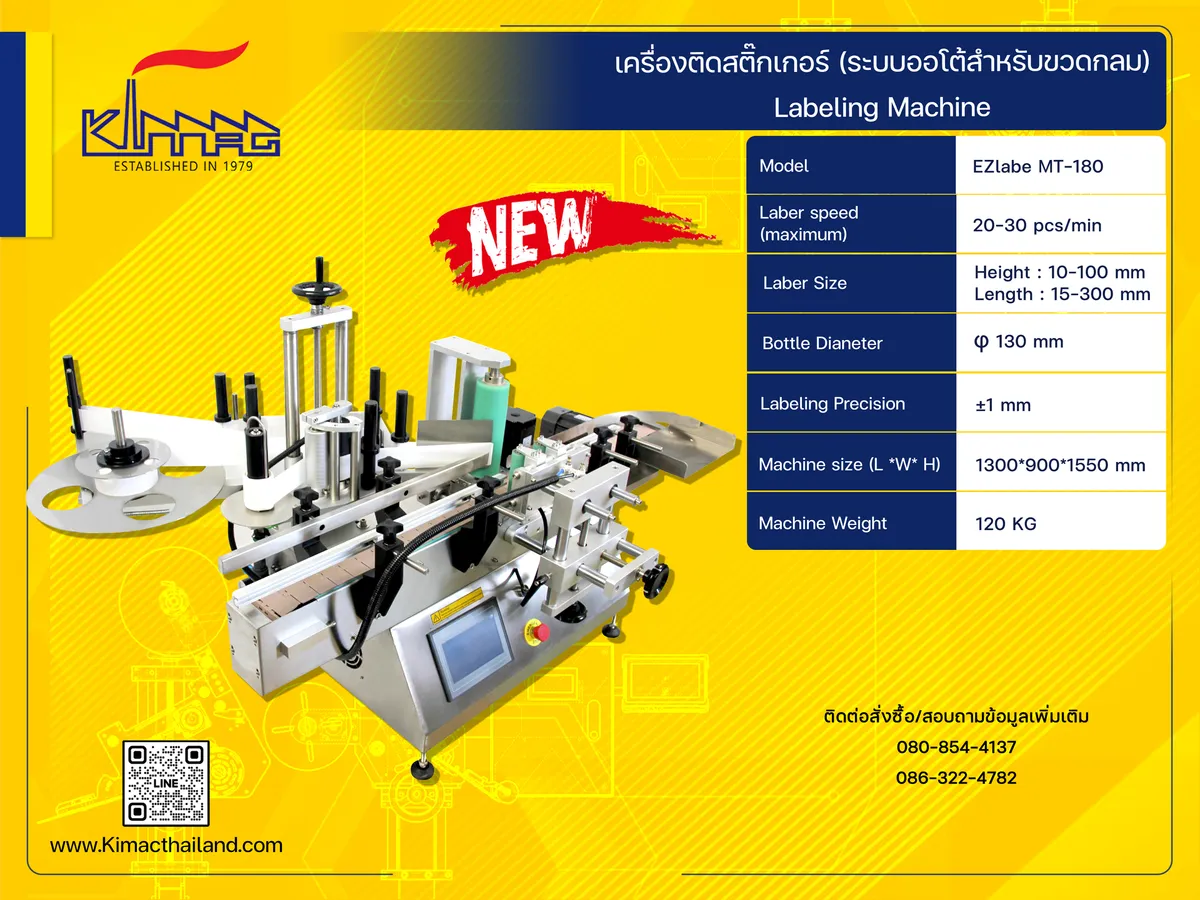

Automatic round bottle labeling machine EZlabe LM180
z-z615360713485.webp)
EZlabe LM180 is a compact Desktop-Type Automatic Round-Bottle Labeling Machine for round packaging such as water bottles, beverage bottles, sauce bottles and tubes. It supports single- and double-side labeling, is PLC controlled, and delivers 20-30 pcs/min. Space-saving and ideal for food, beverage, health, chemical, pharmaceutical and small-packaging industries.
Applicable Products
● Round containers: e.g. plastic bottles, glass bottles, cans
with a diameter up to 130 mm (customizable to your workpiece)
Key Features of the EZlabe LM180
- ●Desktop design: Compact and space-saving, ideal for small to medium production and easy to fit into a production line.
- ●Easy to use: Controlled by PLC and Touch Screen — no highly skilled operator required.
- ●Durable build: Stainless steel SUS304 and anodized aluminum alloy — corrosion-resistant and rust-free.
- ●Precise positioning: Stepping Motor feeding with a high-stability label sensor to reduce misapplication.
- ●Maintenance friendly: Simple to maintain, easy label position adjustment, mobile on casters.
- ●Date printing ready: Supports a production/expiry date printer or Inkjet Printer for Packaging.
Technical Specifications
| Specification | Detail |
|---|---|
| Labeling speed | Approx. 20-30 pcs/min (depending on workpiece shape) |
| Labeling accuracy | +/- 1-2 mm |
| Workpiece size | Capsule & Bottle, diameter up to 130 mm (adjustable to design) |
| Label dispensing speed | Up to 5-20 m/min |
| Label size | Height: 10-100 mm | Length: 15-300 mm |
| Label roll | 3-inch core, OD up to 300 mm, length 300 m, face out |
| Label feed direction | Left to right |
| Power supply | AC 220V 50/60Hz 90W |
| Dimensions & weight | 1300 * 900 * 1550 mm | 120 kg |
Frequently Asked Questions (FAQ)
What products can the EZlabe LM180 label?
All kinds of round packaging such as plastic bottles, glass bottles, cans, water bottles, beverage bottles, sauce bottles and tubes, with a diameter up to 130 mm (customizable), on one or two sides.
How fast is the LM180 round bottle labeler?
About 20-30 pcs/min depending on the workpiece shape and labeling method, with dispensing up to 5-20 m/min.
How is the EZlabe LM180 different from other models?
It is a compact desktop-type labeler (120 kg, 1300 × 900 × 1550 mm), space-saving and ideal for small to medium production.
Can the LM180 print production and expiry dates?
Yes — it supports a production/expiry date printer or an Inkjet Printer for Packaging.
Which industries is the EZlabe LM180 suitable for?
Food, beverage, health, chemical, pharmaceutical and small-packaging industries.
Order / Request a Quote / Machine Demo
Line Official Account: @kimac
Office: +66-2-956-8291-2
Sales: +66-80-854-4137 or +66-84-088-5158
Compatible Products
● Round containers such as plastic bottles, glass bottles, and various cans
Suitable for workpieces with a diameter not exceeding 130 mm (adjustable to fit workpiece size)
Introduction Video
Specific Information
